Air Jack On Board 12V Compressor Kit, 13.8 BAR / 200PSI, 2.5 gallons
Nuke Performance
Reviews
Help others choose right. Be the first to write a review!
Write a reviewAir Jack On Board 12V Compressor Kit, 13.8 BAR / 200PSI, 2.5 gallons
On board, 12v compressor kit with a 2.5 gallons air tank for the Nuke Performance Air Jack 90 C. Holds 13.8 BAR / 200 PSI when fully filled.
This kit lets you use an onboard compressor and air tank for the low-pressure air jacks from Nuke Performance. The system is recommended for vehicles with a maximum weight of 1400kg / 3100lb if used with a 4-kit. The easiest way to change your tires on the drift track without bringing anything else than a fresh set of tires.
Everything you need to lift your vehicle with you at all times, you only need 12V to lift the car up for easy tire changes, maintenance, or alignment.
Compressor Kit Specifications
- Air Jack compatibility: Nuke Performance Air Jack 90 C
- Air Tank connections: 1/4 NPT
- Air Tank capacity: 9.46 liter (2.5 gallons)
- Air Tank length: 607.00mm (23.90")
- Air Tank depth: 151.00mm (5.94")
- Air Tank height: 193.50mm (7.62")
- Compressor Model: VIAIR 485C Gen.2
- Compressor type: 12-Volt
- Compressor max pressure: 13.8V (200 PSI)
- Fill rates 2.5 gallons: 0-200 PSI : 140sec. (± 10 sec.)
- Fill rates 2.5 gallons: 165-200 PSI : 35sec. (± 3 sec.)
- Max. amp draw: 46 Amps
- Pressure switch: 165 PSI ON / 200 PSI OFF

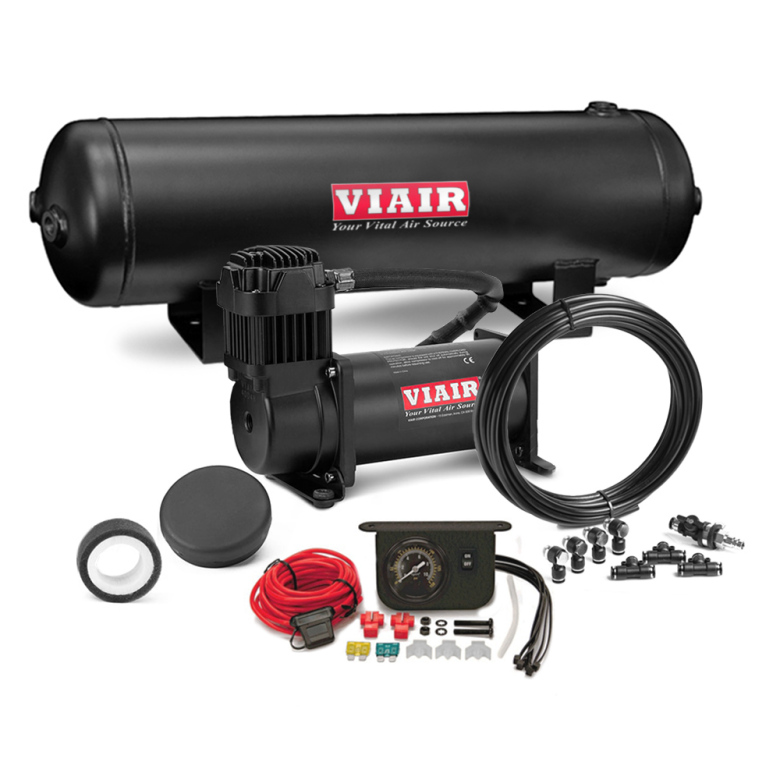

Air Jack On Board 12V Compressor Kit includes:
- 1 x VIAIR Stealth series 12V compressor
- 1 x VIAIR 2.5 gallons air tank, approved for 200 PSI
- 1 x VIAIR illuminated dash panel with pressure gauge and on/off switch
- 1 x 200 PSI pressure sensor
- 2m OD 8mm, PA6 quick connect vacuum tube
- 2 x 1/4 BSPP 90 banjo quick connect fittings
- 1 x 1/4 BSPP Plug
- 1 x 3/8 NPT to 1/4 NPT reducer fitting
- 1 x Pressure release valve
- 1 x 1/4 Drainage Plug
- 1 x Petcock ball valve for 8mm vacuum tube
----------------
